LSL192318 is a FAG cylindrical roller bearing, bore 90 mm, O.D. 190 mm, width 64 mm, dynamic rating 590 kN. Dimensions, drawing, interchanges and price.

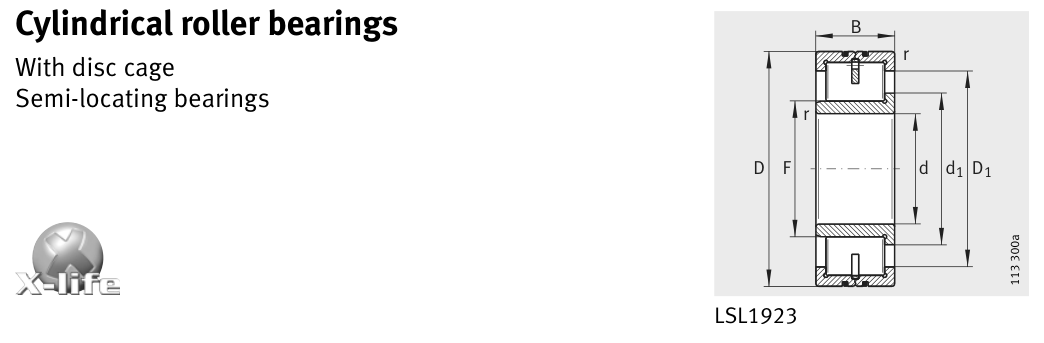

Original catalogue drawing - FAG Schaeffler HR 1, page 410
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
90
3.5433
D
Outside diameter
190
7.4803
B
Inner-ring / bearing width
64
2.5197
r
Chamfer (min)
3
0.1181
F
Roller-set bore dia.
105.26
4.1441
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
90
Outside dia. D (mm)
190
Width B (mm)
64
Inner-ring OD d1 (mm)
117.2
Inner-ring shoulder dia. D1 (mm)
152.5
Dimension F (mm)
105.26
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
132637
Basic static load rating Cor (lbs)
137133
Basic dynamic load rating Cr (N)
590000
Basic static load rating C0r (N)
610000
Fatigue limit load Cur (N)
104000
Limiting speed nG (rpm)
5,000
Reference speed nB (rpm)
7,900
Weight
Weight (kg)
8.6
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
3
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,600 rpm
4
147,500
102
1,058
6
98,333
392
4,089
8
73,750
1,024
10,667
10
59,000
2,154
22,442
15
39,333
8,323
86,703
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 590,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.410 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
Send us the quantity you need and we will come back with price and
lead time, normally within 24 hours. Equivalent parts from other brands can be quoted at the same time.
