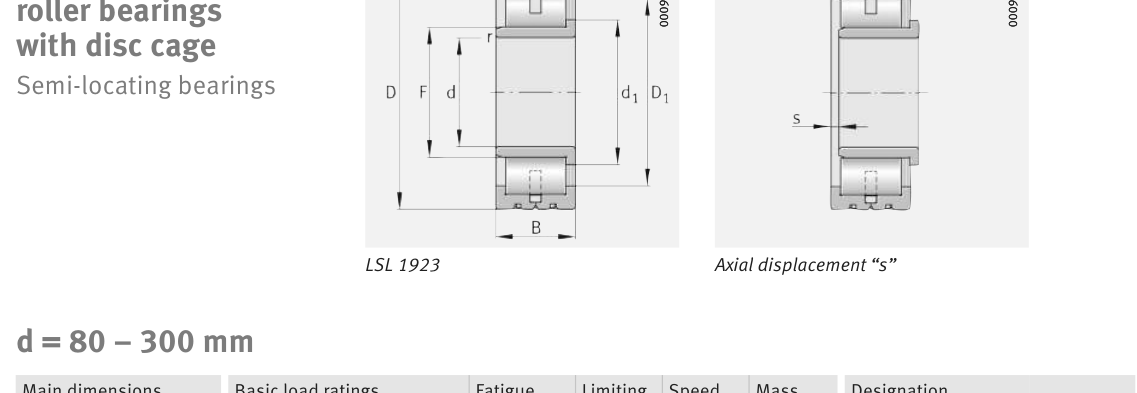

Original catalogue drawing - FAG Schaeffler HR 1, page 494
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
90
3.5433
D
Outside diameter
190
7.4803
B
Inner-ring / bearing width
64
2.5197
r
Chamfer (min)
3
0.1181
F
Roller-set bore dia.
105.3
4.1457
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
90
Outside dia. D (mm)
190
Width B (mm)
64
Inner-ring OD d1 (mm)
117.2
Inner-ring shoulder dia. D1 (mm)
152.5
Dimension F (mm)
105.3
Dimension s (mm)
4
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
132637
Basic static load rating Cor (lbs)
137133
Basic dynamic load rating Cr (N)
590000
Basic static load rating C0r (N)
610000
Fatigue limit load Cur (N)
108000
Limiting speed nG (rpm)
7,500
Reference speed nB (rpm)
4,050
Weight
Weight (kg)
8.6
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
3
Shaft shoulder da (mm)
105
Shaft shoulder dc (mm)
117.5
Housing shoulder Da (mm)
152.5
Housing fillet ra max (mm)
3
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 2,500 rpm
4
147,500
102
677
6
98,333
392
2,617
8
73,750
1,024
6,827
10
59,000
2,154
14,363
15
39,333
8,323
55,490
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 590,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.494 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
