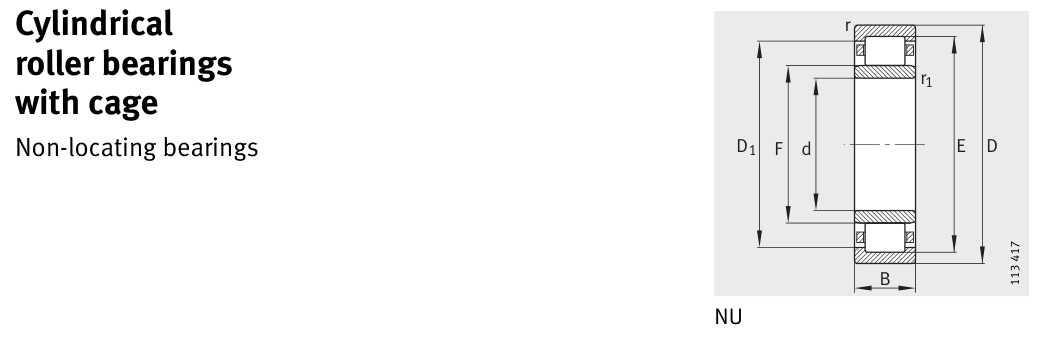

Original catalogue drawing - FAG Schaeffler HR 1, page 380
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
600
23.622
D
Outside diameter
800
31.4961
B
Inner-ring / bearing width
90
3.5433
r
Chamfer (min)
5
0.1969
E
Roller-set outside dia.
748
29.4488
F
Roller-set bore dia.
652
25.6693
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
600
Outside dia. D (mm)
800
Width B (mm)
90
Inner-ring shoulder dia. D1 (mm)
730.7
Dimension E (mm)
748
Dimension F (mm)
652
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
382175
Basic static load rating Cor (lbs)
775591
Basic dynamic load rating Cr (N)
1.7e+06
Basic static load rating C0r (N)
3.45e+06
Fatigue limit load Cur (N)
249000
Limiting speed nG (rpm)
1,400
Weight
Weight (kg)
125.0
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
5
Chamfer r1 min (mm)
5
Shaft shoulder da (mm)
617
Shaft shoulder db (mm)
657
Housing shoulder Da (mm)
783
Housing fillet ra max (mm)
4
Housing fillet ra1 max (mm)
4
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 400 rpm
4
425,000
102
4,233
6
283,333
392
16,354
8
212,500
1,024
42,667
10
170,000
2,154
89,768
15
113,333
8,323
346,811
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 1,700,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.380 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
