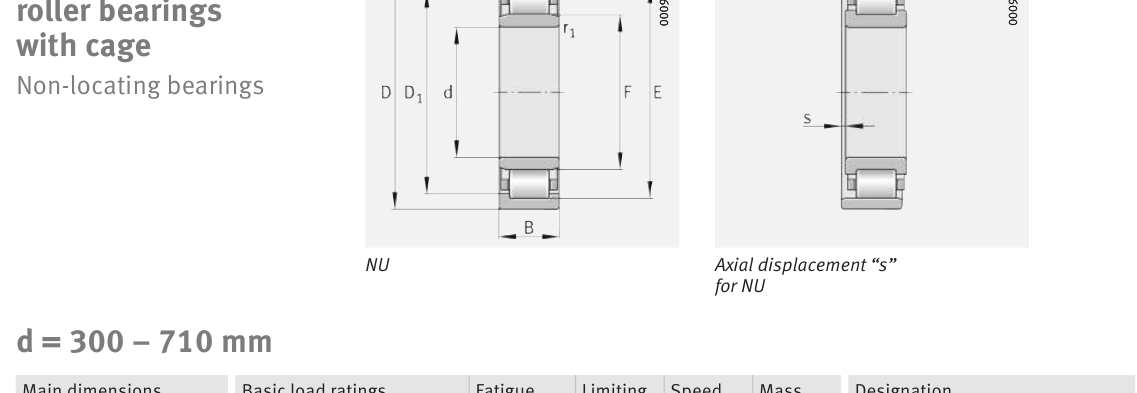

Original catalogue drawing - FAG Schaeffler HR 1, page 448
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
670
26.378
D
Outside diameter
900
35.4331
B
Inner-ring / bearing width
103
4.0551
r
Chamfer (min)
6
0.2362
E
Roller-set outside dia.
839
33.0315
F
Roller-set bore dia.
731
28.7795
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
670
Outside dia. D (mm)
900
Width B (mm)
103
Inner-ring shoulder dia. D1 (mm)
817
Dimension E (mm)
839
Dimension F (mm)
731
Dimension s (mm)
11.3
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
458610
Basic static load rating Cor (lbs)
955438
Basic dynamic load rating Cr (N)
2.04e+06
Basic static load rating C0r (N)
4.25e+06
Fatigue limit load Cur (N)
290000
Limiting speed nG (rpm)
1,190
Weight
Weight (kg)
186.0
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
6
Chamfer r1 min (mm)
6
Shaft shoulder da (mm)
693
Shaft shoulder db (mm)
736
Housing shoulder Da (mm)
877
Housing fillet ra max (mm)
5
Housing fillet ra1 max (mm)
5
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 300 rpm
4
510,000
102
5,644
6
340,000
392
21,805
8
255,000
1,024
56,889
10
204,000
2,154
119,691
15
136,000
8,323
462,415
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 2,040,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.448 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
