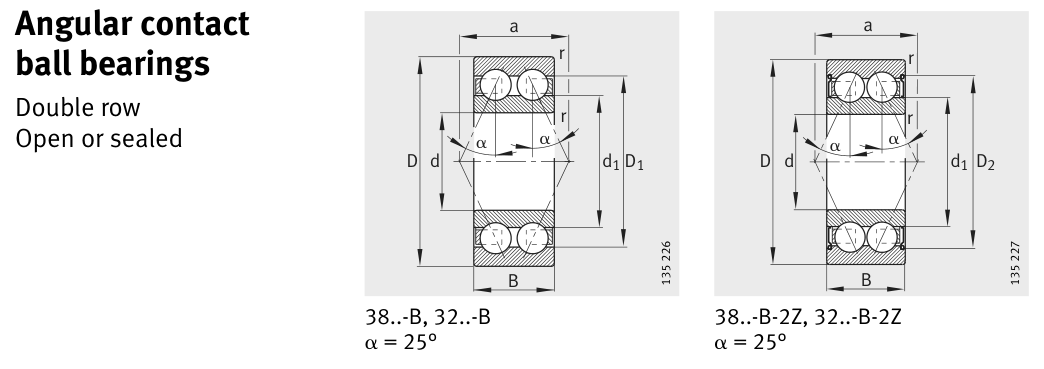

Original catalogue drawing - FAG Schaeffler HR 1, page 268
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
85
3.3465
D
Outside diameter
150
5.9055
B
Inner-ring / bearing width
49.2
1.937
r
Chamfer (min)
2
0.0787
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
85
Outside dia. D (mm)
150
Width B (mm)
49.2
Inner-ring OD d1 (mm)
108.5
Inner-ring shoulder dia. D1 (mm)
135.1
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
28326
Basic static load rating Cor (lbs)
33946
Basic dynamic load rating Cr (N)
126000
Basic static load rating C0r (N)
151000
Fatigue limit load Cur (N)
7300
Limiting speed nG (rpm)
3,800
Reference speed nB (rpm)
4,750
Effective load centre a (mm)
106
Weight
Weight (kg)
3.44
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2
Shaft shoulder da (mm)
96
Housing shoulder Da (mm)
139
Housing fillet ra max (mm)
2
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,200 rpm
4
31,500
64
889
6
21,000
216
3,000
8
15,750
512
7,111
10
12,600
1,000
13,889
15
8,400
3,375
46,875
Basic rating life per ISO 281: L10 = (C/P)3 with C = 126,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.268 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
