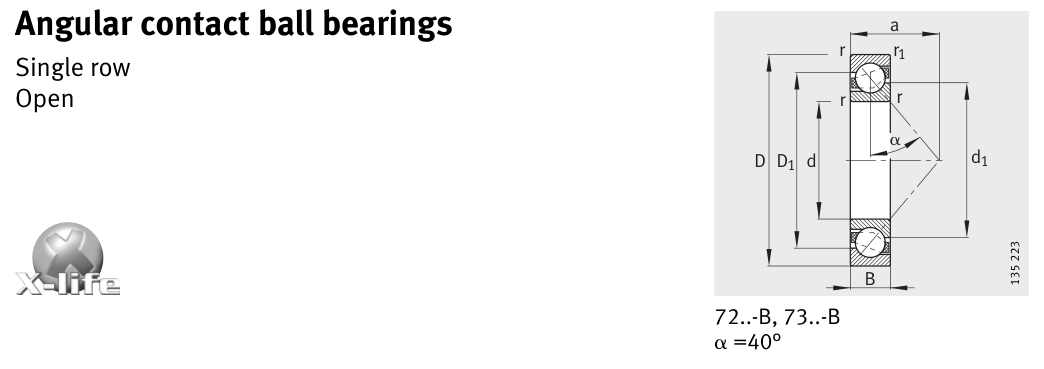

Original catalogue drawing - FAG Schaeffler HR 1, page 246
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
85
3.3465
D
Outside diameter
150
5.9055
B
Inner-ring / bearing width
28
1.1024
r
Chamfer (min)
2
0.0787
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
85
Outside dia. D (mm)
150
Width B (mm)
28
Inner-ring OD d1 (mm)
110.6
Inner-ring shoulder dia. D1 (mm)
125
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
20233
Basic static load rating Cor (lbs)
19334
Basic dynamic load rating Cr (N)
90000
Basic static load rating C0r (N)
86000
Fatigue limit load Cur (N)
5300
Limiting speed nG (rpm)
4,500
Reference speed nB (rpm)
4,800
Effective load centre a (mm)
63
Weight
Weight (kg)
1.94
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2
Chamfer r1 min (mm)
1
Shaft shoulder da (mm)
96
Housing shoulder Da (mm)
139
Housing shoulder Db (mm)
144.4
Housing fillet ra max (mm)
2
Housing fillet ra1 max (mm)
1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,500 rpm
4
22,500
64
711
6
15,000
216
2,400
8
11,250
512
5,689
10
9,000
1,000
11,111
15
6,000
3,375
37,500
Basic rating life per ISO 281: L10 = (C/P)3 with C = 90,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.246 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
