3220-B-2RS-TVHFAGPrecision / Angular Contact

Name: FAG 3220-B-2RS-TVH Precision / Angular Contact Bearing
Brand: FAG
SKU: 3220-B-2RS-TVH

3220-B-2RS-TVH is a FAG precision / angular contact bearing, bore 100 mm, O.D. 180 mm, width 60.3 mm. Dimensions, drawing, interchanges and price.

Sealed both sidesPolyamide cage

Request a quote WhatsApp Email us Search the catalog

Bore d100mm

Outside dia. D180mm

Width B60.3mm

Dynamic Cr185kN

Static C0r173kN

Limiting speed2,210rpm

Weight5.5kg

Cr / C0r1.07

Mean dia. dm140mm

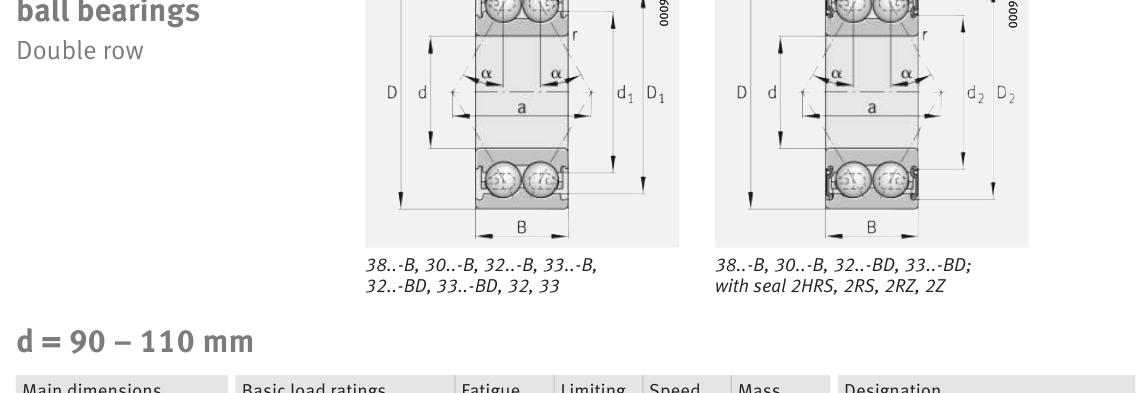

Original catalogue drawing - FAG Schaeffler HR 1, page 344

3220-B-2RS-TVH FAG Precision / Angular Contact bearing catalogue drawing

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.

Scale cross-section

Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.

Dimension table (mm / inch)

Symbol	Dimension	mm	inch
d	Bore diameter	100	3.937
D	Outside diameter	180	7.0866
B	Inner-ring / bearing width	60.3	2.374
r	Chamfer (min)	2.1	0.0827

Notes

Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.

Main dimensions

Bore d (mm)	100
Outside dia. D (mm)	180
Width B (mm)	60.3
Seal outside dia. D2 (mm)	157.4

Load ratings & speeds

Basic dynamic load rating Cr (lbs)	41590
Basic static load rating Cor (lbs)	38892
Basic dynamic load rating Cr (N)	185000
Basic static load rating C0r (N)	173000
Fatigue limit load Cur (N)	7400
Limiting speed nG (rpm)	2,210
Effective load centre a (mm)	91.3

Weight

Weight (kg)	5.5

Mounting dimensions (fillets / shoulders)

Housing fillet r max (mm)	2.1
Shaft shoulder da (mm)	112
Housing shoulder Da (mm)	168
Housing fillet ra max (mm)	2.1

Bearing life (ISO 281 basic rating life)

C / P	Equivalent load P (N)	L₁₀ (10⁶ rev)	L_10h at 700 rpm
4	46,250	64	1,524
6	30,833	216	5,143
8	23,125	512	12,190
10	18,500	1,000	23,810
15	12,333	3,375	80,357

Basic rating life per ISO 281: L₁₀ = (C/P)³ with C = 185,000 N. Hours = L₁₀ x 10⁶ / (60n). Life-modification factors for lubrication, contamination and temperature (a_ISO) are not included.

Source & traceability

Brand	FAG
Source catalogue	FAG / Schaeffler Rolling Bearings HR 1
Catalogue page	p.344 (dimensions)

Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.

Interchange - same dimensions, other brands

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
23220CAME4	NSK	Spherical Roller	100	180	60.3	94,000 lbs	6.4
23220CE4	NSK	Spherical Roller	100	180	60.3	94,000 lbs	6.527

Same dimensions, same brand

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
23220-E1-XL-K-TVPB	FAG	Spherical Roller	100	180	60.3	560 kN	6.1
23220-E1-XL-TVPB	FAG	Spherical Roller	100	180	60.3	560 kN	6.3
23220-E1A-XL-K-M	FAG	Spherical Roller	100	180	60.3	560 kN	6.3
23220-E1A-XL-M	FAG	Spherical Roller	100	180	60.3	560 kN	6.5
3220	FAG	Precision / Angular Contact	100	180	60.3	181 kN	6.19
3220-B-2Z-TVH	FAG	Precision / Angular Contact	100	180	60.3	185 kN	5.5
3220-B-TVH	FAG	Precision / Angular Contact	100	180	60.3	185 kN	5.4

Series variants (different suffix)

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
3220	FAG	Precision / Angular Contact	100	180	60.3	181 kN	6.19
3220-B-2Z-TVH	FAG	Precision / Angular Contact	100	180	60.3	185 kN	5.5
3220-B-TVH	FAG	Precision / Angular Contact	100	180	60.3	185 kN	5.4

Nearby bore sizes

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
3320-DA-MA	FAG	Precision / Angular Contact	100	215	82.6	260 kN	15.61
3320-M	FAG	Precision / Angular Contact	100	215	82.6	270 kN	14.6
3820-B-2RS-TVH	FAG	Precision / Angular Contact	100	125	19	28 kN	0.463
3820-B-TVH	FAG	Precision / Angular Contact	100	125	19	28 kN	0.45
7220-B-JP	FAG	Precision / Angular Contact	100	180	34	137 kN	3.45
7220-B-TVP	FAG	Precision / Angular Contact	100	180	34	132 kN	3.17
7220-B-XL-JP	FAG	Precision / Angular Contact	100	180	34	148 kN	3.45
7220-B-XL-TVP	FAG	Precision / Angular Contact	100	180	34	142 kN	3.17
