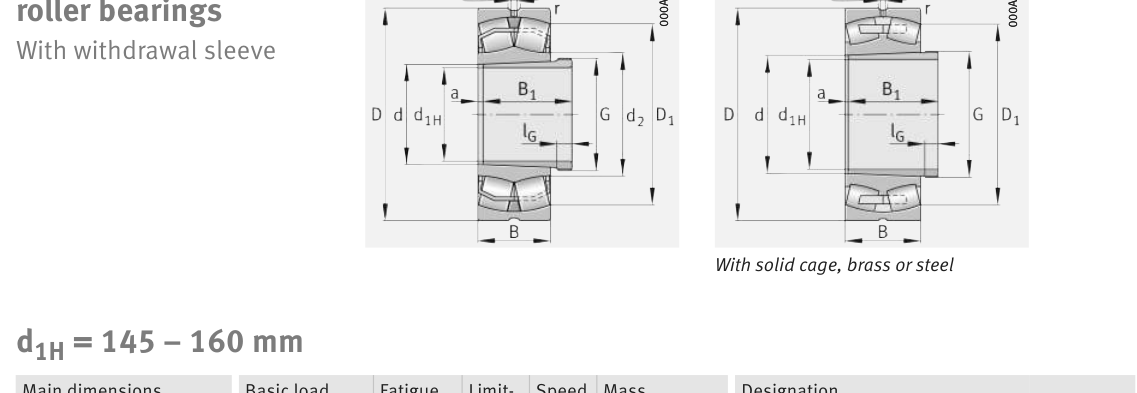

Original catalogue drawing - FAG Schaeffler HR 1, page 776
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
150
5.9055
D
Outside diameter
225
8.8583
B
Inner-ring / bearing width
75
2.9528
r
Chamfer (min)
2.1
0.0827
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
150
Outside dia. D (mm)
225
Width B (mm)
75
Inner-ring shoulder dia. D1 (mm)
199.4
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
152870
Basic static load rating Cor (lbs)
245042
Basic dynamic load rating Cr (N)
680000
Basic static load rating C0r (N)
1.09e+06
Fatigue limit load Cur (N)
122000
Factor e
0.29
Factor Y0
2.26
Limiting speed nG (rpm)
2,750
Reference speed nB (rpm)
1,790
Effective load centre a (mm)
11
Weight
Weight (kg)
10.7
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2.1
Shaft shoulder da (mm)
160.2
Housing shoulder Da (mm)
214.8
Housing fillet ra max (mm)
2.1
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 900 rpm
4
170,000
102
1,881
6
113,333
392
7,268
8
85,000
1,024
18,963
10
68,000
2,154
39,897
15
45,333
8,323
154,138
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 680,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.776 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
