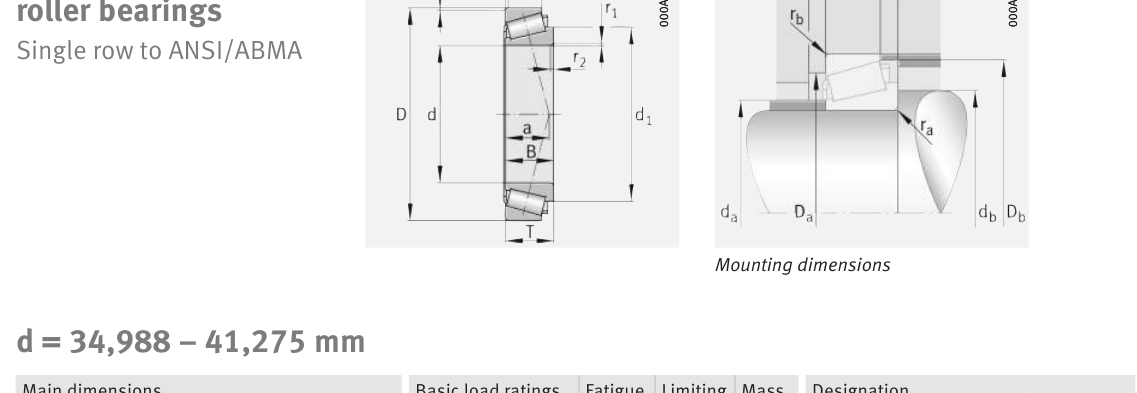

Original catalogue drawing - FAG Schaeffler HR 1, page 616
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
41.275
1.625
D
Outside diameter
73.431
2.891
B
Inner-ring / bearing width
19.812
0.78
T
Overall assembly width
21.43
0.8437
C
Cup / outer-ring width
16.604
0.6537
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
41.275
Outside dia. D (mm)
73.431
Width B (mm)
19.812
Overall width T (mm)
21.43
Cup width C (mm)
16.604
Inner-ring OD d1 (mm)
57.2
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
12364
Basic static load rating Cor (lbs)
15287
Basic dynamic load rating Cr (N)
55000
Basic static load rating C0r (N)
68000
Basic dynamic axial rating Ca (N)
1.5
Fatigue limit load Cur (N)
8100
Factor e
0.4
Factor Y
1.5
Factor Y0
0.83
Limiting speed nG (rpm)
10,000
Effective load centre a (mm)
18
Weight
Weight (kg)
0.366
Mounting dimensions (fillets / shoulders)
Chamfer r2 min (mm)
3.6
Shaft shoulder da (mm)
46.5
Shaft shoulder db (mm)
53
Housing shoulder Da (mm)
66
Housing shoulder Db (mm)
70
Housing fillet ra max (mm)
3.6
Fillet rb max (mm)
0.8
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 3,000 rpm
4
13,750
102
564
6
9,167
392
2,181
8
6,875
1,024
5,689
10
5,500
2,154
11,969
15
3,667
8,323
46,241
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 55,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
FAG
Source catalogue
FAG / Schaeffler Rolling Bearings HR 1
Catalogue page
p.616 (dimensions)
Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.
