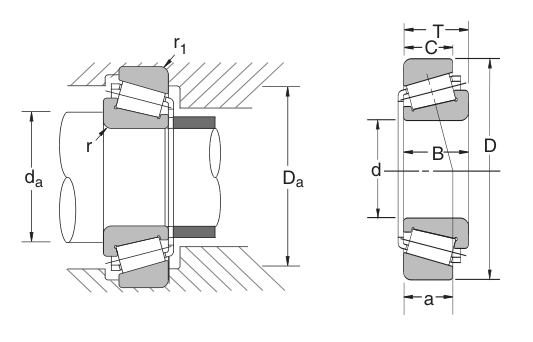

Original catalogue drawing - NSK catalogue, page 135
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
41.275
1.625
D
Outside diameter
73.431
2.891
B
Inner-ring / bearing width
19.812
0.78
T
Overall assembly width
21.43
0.8437
C
Cup / outer-ring width
16.604
0.6537
r
Chamfer (min)
3.556
0.14
Notes
Tapered roller bearings are cone / cup assemblies; cone and cup weights are listed separately and the total is their sum. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
41.275
Bore d (in)
1.6250
Outside dia. D (mm)
73.431
Outside dia. D (in)
2.8910
Width B (in)
0.7800
Overall width T (mm)
21.430
Overall width T (in)
0.8437
Cup width C (in)
0.6537
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
12200
Basic static load rating Cor (lbs)
15100
Effective centre a (in)
0.71
Weight
Cone weight (kg)
0.218
Cup weight (kg)
0.127
Total weight (kg)
0.345
Mounting dimensions (fillets / shoulders)
Chamfer r (in)
0.14
Chamfer r1 (in)
0.03
Shaft shoulder da min (in)
2.60
Shaft shoulder da (in)
1.83
Housing shoulder Da (in)
2.76
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
13,567
102
3,386
6
9,045
392
13,083
8
6,784
1,024
34,133
10
5,427
2,154
71,814
15
3,618
8,323
277,449
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 54,268 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK inch product catalogue
Catalogue page
p.137 (dimensions) / p.138 (ratings)
Dimensions in inches and millimetres, load ratings in lbs.
