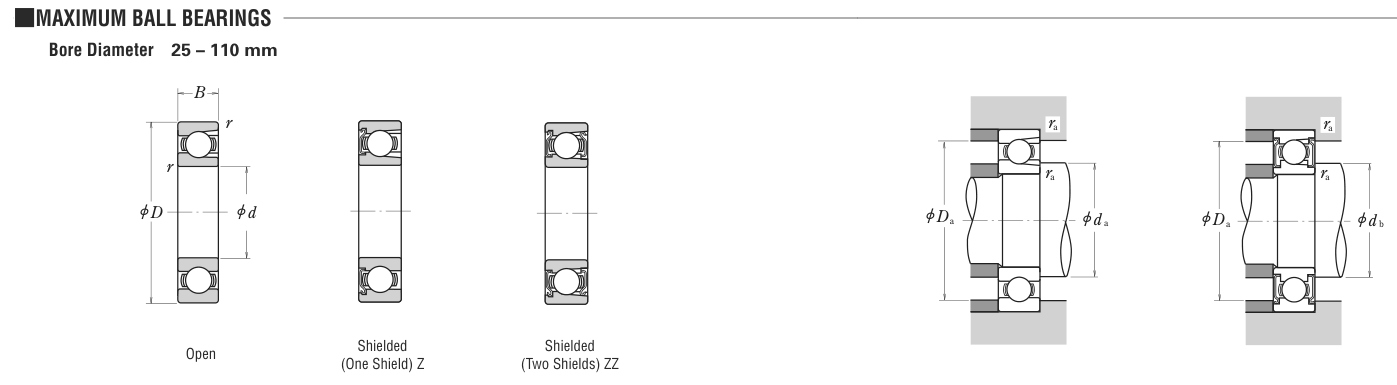

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
110
4.3307
D
Outside diameter
200
7.874
B
Inner-ring / bearing width
38
1.4961
r
Chamfer (min)
2.1
0.0827
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
110
Outside dia. D (mm)
200
Width B (mm)
38
Load ratings & speeds
Limiting speed - grease (rpm)
2,800
Limiting speed - oil (rpm)
3,400
Weight
Weight (kg)
4.84
Mounting dimensions (fillets / shoulders)
Housing fillet r max (mm)
2.1
Source & traceability
Brand
NSK
Source catalogue
NSK CAT. No. E1103 (metric)
Catalogue page
p.190 (dimensions)
Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
Send us the quantity you need and we will come back with price and
lead time, normally within 24 hours. Equivalent parts from other brands can be quoted at the same time.
