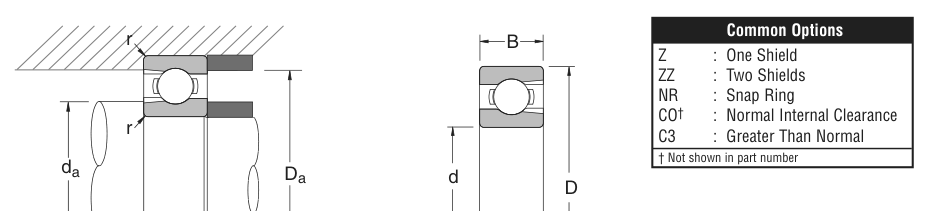

Original catalogue drawing - NSK catalogue, page 43
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
65
2.5591
D
Outside diameter
140
5.5118
B
Inner-ring / bearing width
33
1.2992
r
Chamfer (min)
2.007
0.079
Notes
Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
65
Bore d (in)
2.5591
Outside dia. D (mm)
140
Outside dia. D (in)
5.5118
Width B (mm)
33
Width B (in)
1.2992
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
27300
Basic static load rating Cor (lbs)
20200
Limiting speed - grease (rpm)
4,800
Limiting speed - oil (rpm)
6,000
Weight
Weight (kg)
2.313
Mounting dimensions (fillets / shoulders)
Chamfer r (in)
0.079
Shaft shoulder da min (in)
2.994
Shaft shoulder da max (in)
3.369
Housing shoulder Da max (in)
5.083
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 1,600 rpm
4
30,359
64
667
6
20,239
216
2,250
8
15,180
512
5,333
10
12,144
1,000
10,417
15
8,096
3,375
35,156
Basic rating life per ISO 281: L10 = (C/P)3 with C = 121,436 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
NSK
Source catalogue
NSK inch product catalogue
Catalogue page
p.45 (dimensions) / p.46 (ratings)
Dimensions in inches and millimetres, load ratings in lbs.
