21308EAE4NSKSpherical Roller

Name: NSK 21308EAE4 Spherical Roller Bearing
Brand: NSK
SKU: 21308EAE4

21308EAE4 is a NSK spherical roller bearing, bore 40 mm, O.D. 90 mm, width 23 mm, dynamic rating 118 kN. Dimensions, drawing, interchanges and price.

Request a quote WhatsApp Email us Search the catalog

Bore d40mm

Outside dia. D90mm

Width B23mm

Dynamic Cr118kN

Static C0r111kN

Limiting speed6,000rpm

Weight0.73kg

Cr / C0r1.06

Mean dia. dm65mm

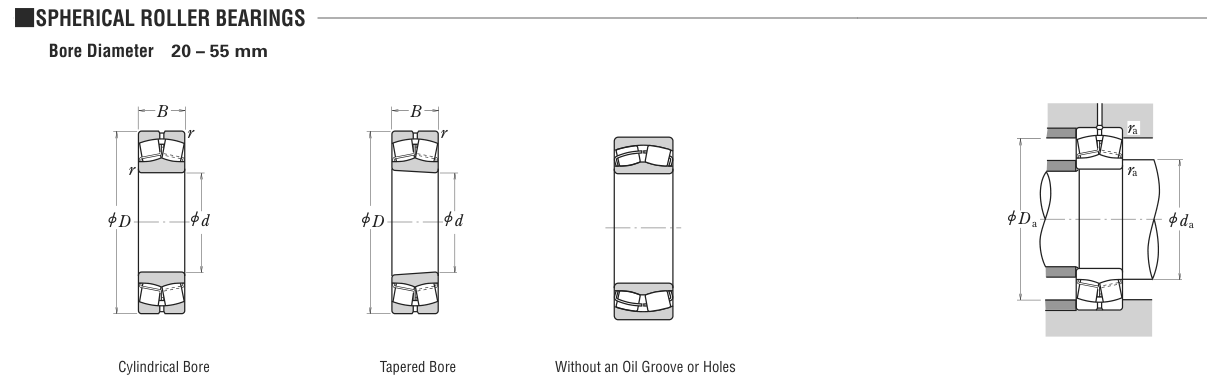

Original catalogue drawing - NSK E1103, page 299

21308EAE4 NSK Spherical Roller bearing catalogue drawing

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.

Scale cross-section

Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.

Dimension table (mm / inch)

Symbol	Dimension	mm	inch
d	Bore diameter	40	1.5748
D	Outside diameter	90	3.5433
B	Inner-ring / bearing width	23	0.9055
r	Chamfer (min)	1.5	0.0591

Notes

Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.

Main dimensions

Bore d (mm)	40
Outside dia. D (mm)	90
Width B (mm)	23

Load ratings & speeds

Basic dynamic load rating Cr (lbs)	26527
Basic static load rating Cor (lbs)	24954
Basic dynamic load rating Cr (N)	118000
Basic static load rating C0r (N)	111000
Limiting speed - grease (rpm)	6,000
Limiting speed - oil (rpm)	11,000

Weight

Weight (kg)	0.73

Mounting dimensions (fillets / shoulders)

Housing fillet r max (mm)	1.5

Bearing life (ISO 281 basic rating life)

C / P	Equivalent load P (N)	L₁₀ (10⁶ rev)	L_10h at 2,000 rpm
4	29,500	102	847
6	19,667	392	3,271
8	14,750	1,024	8,533
10	11,800	2,154	17,954
15	7,867	8,323	69,362

Basic rating life per ISO 281: L₁₀ = (C/P)^10/3 with C = 118,000 N. Hours = L₁₀ x 10⁶ / (60n). Life-modification factors for lubrication, contamination and temperature (a_ISO) are not included.

Source & traceability

Brand	NSK
Source catalogue	NSK CAT. No. E1103 (metric)
Catalogue page	p.299 (dimensions)

Load ratings in newtons, weights in kg, limiting speeds for grease and oil lubrication.
