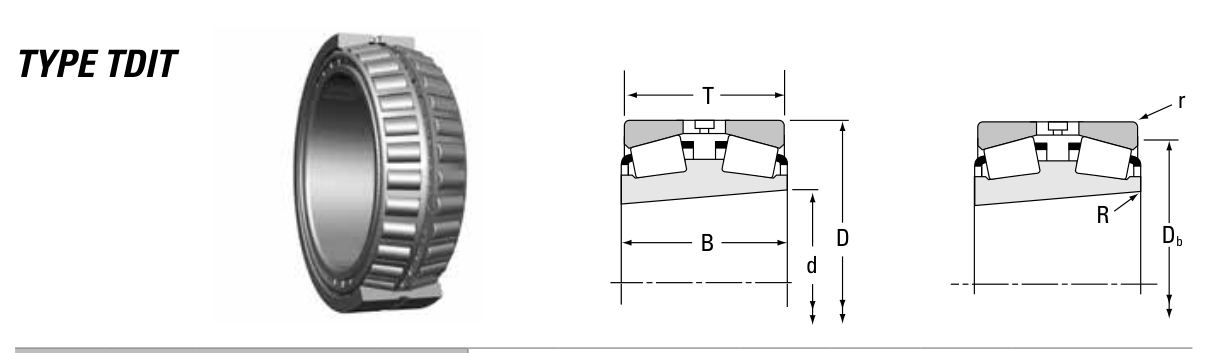

Original catalogue drawing - Timken TRB Catalog, page 642
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
243.152
9.5729
D
Outside diameter
327.025
12.875
B
Inner-ring / bearing width
101.6
4
T
Overall assembly width
92.075
3.625
r
Chamfer (min)
3.3
0.1299
Notes
Tapered roller bearings are cone / cup assemblies; cone and cup weights are listed separately and the total is their sum. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
243.152
Bore d (in)
9.5729
Outside dia. D (mm)
327.025
Outside dia. D (in)
12.8750
Width B (mm)
101.600
Width B (in)
4.0000
Overall width T (mm)
92.075
Overall width T (in)
3.6250
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
222000
Basic dynamic load rating Cr (N)
987000
Dynamic rating C1 (N, ISO)
987000
Dynamic rating C1 (lbf, ISO)
222000
Radial rating C90 (N)
147000
Radial rating C90 (lbf)
33000
Thrust rating Ca90 (N)
80800
Thrust rating Ca90 (lbf)
18200
Factor e
0.32
Factor Y1
2.10
Factor Y2
3.13
Factor K
1.82
Geometry factor G1
1173.3
Geometry factor G2
243.9
Geometry factor Cg
0.1345
Weight
Weight (kg)
23.7
Mounting dimensions (fillets / shoulders)
Shaft fillet R max (mm)
1.5
Housing fillet r max (mm)
3.3
Housing shoulder Db (mm)
310.0
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
246,750
102
3,386
6
164,500
392
13,083
8
123,375
1,024
34,133
10
98,700
2,154
71,814
15
65,800
8,323
277,449
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 987,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
Timken
Source catalogue
Timken Tapered Roller Bearing Catalog (2016)
Catalogue page
p.642 (dimensions)
Series type
TDIT
ISO dynamic rating C1, Timken C90 / Ca90, static rating C0, geometry factors and assembly weight.
