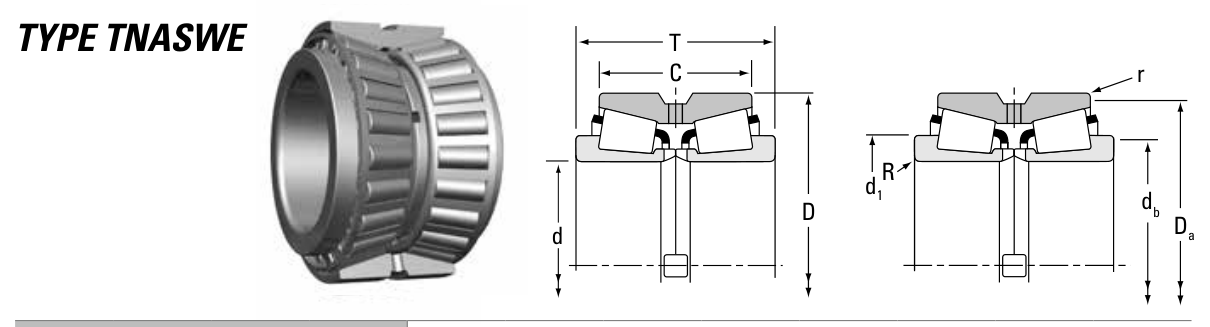

Original catalogue drawing - Timken TRB Catalog, page 668
Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.
Scale cross-section
Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own
dimensions for selection reference only - not a manufacturing or assembly drawing.
Dimension table (mm / inch)
Symbol
Dimension
mm
inch
d
Bore diameter
244.475
9.625
D
Outside diameter
349.148
13.746
T
Overall assembly width
133.35
5.25
C
Cup / outer-ring width
101.6
4
r
Chamfer (min)
1.5
0.0591
Notes
Tapered roller bearings are cone / cup assemblies; cone and cup weights are listed separately and the total is their sum. Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.
Main dimensions
Bore d (mm)
244.475
Bore d (in)
9.6250
Outside dia. D (mm)
349.148
Outside dia. D (in)
13.7460
Overall width T (mm)
133.350
Overall width T (in)
5.2500
Cup width C (mm)
101.600
Cup width C (in)
4.0000
Load ratings & speeds
Basic dynamic load rating Cr (lbs)
258000
Basic dynamic load rating Cr (N)
1150000
Dynamic rating C1 (N, ISO)
1150000
Dynamic rating C1 (lbf, ISO)
258000
Radial rating C90 (N)
171000
Radial rating C90 (lbf)
38500
Thrust rating Ca90 (N)
103000
Thrust rating Ca90 (lbf)
23300
Factor e
0.35
Factor Y1
1.91
Factor Y2
2.85
Factor K
1.65
Weight
Weight (kg)
34.95
Mounting dimensions (fillets / shoulders)
Shaft fillet R max (mm)
6.4
Housing fillet r max (mm)
1.5
Shaft shoulder db (mm)
269.0
Housing shoulder Da (mm)
329.0
Bearing life (ISO 281 basic rating life)
C / P
Equivalent load P (N)
L10 (106 rev)
L10h at 500 rpm
4
287,500
102
3,386
6
191,667
392
13,083
8
143,750
1,024
34,133
10
115,000
2,154
71,814
15
76,667
8,323
277,449
Basic rating life per ISO 281: L10 = (C/P)10/3 with C = 1,150,000 N. Hours = L10 x 106 / (60n). Life-modification factors for lubrication, contamination and temperature (aISO) are not included.
Source & traceability
Brand
Timken
Source catalogue
Timken Tapered Roller Bearing Catalog (2016)
Catalogue page
p.668 (dimensions)
Series type
TNASW
ISO dynamic rating C1, Timken C90 / Ca90, static rating C0, geometry factors and assembly weight.
