7317-B-XL-JPFAGPrecision / Angular Contact

Name: FAG 7317-B-XL-JP Precision / Angular Contact Bearing
Brand: FAG
SKU: 7317-B-XL-JP

7317-B-XL-JP is a FAG precision / angular contact bearing, bore 85 mm, O.D. 180 mm, width 41 mm. Dimensions, drawing, interchanges and price.

X-life

Request a quote WhatsApp Email us Search the catalog

Bore d85mm

Outside dia. D180mm

Width B41mm

Dynamic Cr167kN

Static C0r138kN

Limiting speed4,450rpm

Weight4.4kg

Cr / C0r1.21

Mean dia. dm132.5mm

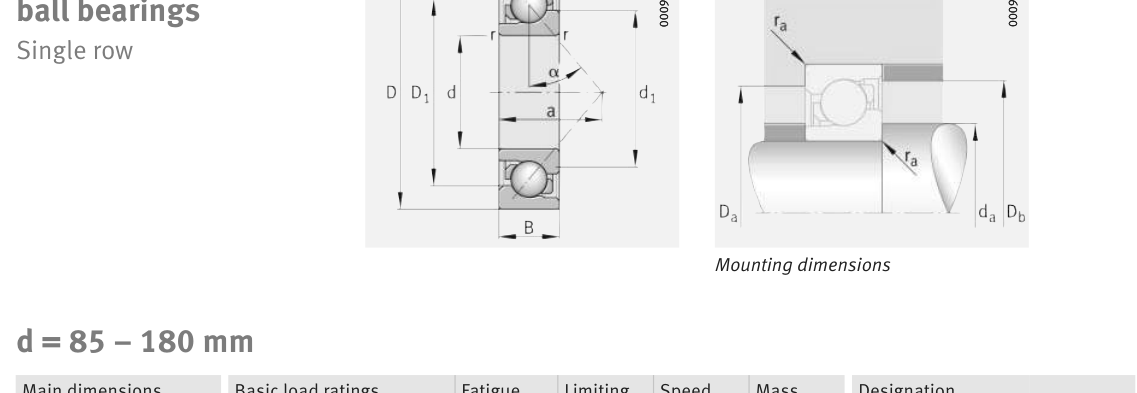

Original catalogue drawing - FAG Schaeffler HR 1, page 312

7317-B-XL-JP FAG Precision / Angular Contact bearing catalogue drawing

Scanned from the manufacturer catalogue page listing this part number. All part numbers printed on that table share the same drawing.

Scale cross-section

Blue = inner / outer ring, yellow = rolling element. Drawn to scale from this part's own dimensions for selection reference only - not a manufacturing or assembly drawing.

Dimension table (mm / inch)

Symbol	Dimension	mm	inch
d	Bore diameter	85	3.3465
D	Outside diameter	180	7.0866
B	Inner-ring / bearing width	41	1.6142
r	Chamfer (min)	3	0.1181

Notes

Weights are given in kg. Load ratings are shown in both the original catalogue units and the converted value (1 N = 0.2248 lbf). Data is provided for selection reference only - confirm against the latest official catalogue before ordering.

Main dimensions

Bore d (mm)	85
Outside dia. D (mm)	180
Width B (mm)	41
Inner-ring OD d1 (mm)	122
Inner-ring shoulder dia. D1 (mm)	144

Load ratings & speeds

Basic dynamic load rating Cr (lbs)	37543
Basic static load rating Cor (lbs)	31024
Basic dynamic load rating Cr (N)	167000
Basic static load rating C0r (N)	138000
Fatigue limit load Cur (N)	8100
Limiting speed nG (rpm)	4,450
Reference speed nB (rpm)	4,100
Effective load centre a (mm)	76

Weight

Weight (kg)	4.4

Mounting dimensions (fillets / shoulders)

Housing fillet r max (mm)	3
Chamfer r1 min (mm)	1.1
Shaft shoulder da (mm)	99
Housing shoulder Da (mm)	166
Housing shoulder Db (mm)	173
Housing fillet ra max (mm)	2.5
Housing fillet ra1 max (mm)	1

Bearing life (ISO 281 basic rating life)

C / P	Equivalent load P (N)	L₁₀ (10⁶ rev)	L_10h at 1,400 rpm
4	41,750	64	762
6	27,833	216	2,571
8	20,875	512	6,095
10	16,700	1,000	11,905
15	11,133	3,375	40,179

Basic rating life per ISO 281: L₁₀ = (C/P)³ with C = 167,000 N. Hours = L₁₀ x 10⁶ / (60n). Life-modification factors for lubrication, contamination and temperature (a_ISO) are not included.

Source & traceability

Brand	FAG
Source catalogue	FAG / Schaeffler Rolling Bearings HR 1
Catalogue page	p.312 (dimensions)

Load ratings in newtons, fatigue limit load Cur, limiting speed nG and reference speed nB.

Interchange - same dimensions, other brands

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
1317	NSK	Ball	85	180	41	108 kN	5.03
6317	NSK	Ball	85	180	41	29,800 lbs	4.25
7317B	NSK	Ball	85	180	41	30,900 lbs	5.035
BL317	NSK	Ball	85	180	41	39,100 lbs	4.699
317	NSK	Cylindrical Roller	85	180	41	47,500 lbs	4.536
NU317	NSK	Cylindrical Roller	85	180	41	261 kN	4.6
NU317E	NSK	Cylindrical Roller	85	180	41	360 kN	5.26
21317EAE4	NSK	Spherical Roller	85	180	41	360 kN	5.2
HR30317	NSK	Tapered Roller	85	180	41	380 kN	5.08
HR30317J	NSK	Tapered Roller	85	180	41	69,700 lbs	5.08

Same dimensions, same brand

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
1317-K-M-C3	FAG	Ball	85	180	41	99 kN	5.32
1317-M	FAG	Ball	85	180	41	99 kN	5.39
6317	FAG	Ball	85	180	41	141 kN	4.25
6317-2RSR	FAG	Ball	85	180	41	141 kN	4.25
6317-2Z	FAG	Ball	85	180	41	141 kN	4.33
QJ317-N2-MPA	FAG	Ball	85	180	41	245 kN	5.54
N317-E-M1	FAG	Cylindrical Roller	85	180	41	340 kN	5.3
N317-E-XL-M1	FAG	Cylindrical Roller	85	180	41	340 kN	5.3

Series variants (different suffix)

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
7317-B-JP	FAG	Precision / Angular Contact	85	180	41	155 kN	4.4
7317-B-TVP	FAG	Precision / Angular Contact	85	180	41	155 kN	4.26
7317-B-XL-TVP	FAG	Precision / Angular Contact	85	180	41	167 kN	4.26

Nearby bore sizes

Designation	Brand	Type	d	D	B/T	Dyn. rating	kg
3217	FAG	Precision / Angular Contact	85	150	49.2	126 kN	3.44
3217-B-2RS-TVH	FAG	Precision / Angular Contact	85	150	49.2	135 kN	3.3
3217-B-2Z-TVH	FAG	Precision / Angular Contact	85	150	49.2	135 kN	3.3
3217-B-TVH	FAG	Precision / Angular Contact	85	150	49.2	135 kN	3
3317-DA-MA	FAG	Precision / Angular Contact	85	180	73	209 kN	9.39
3317-M	FAG	Precision / Angular Contact	85	180	73	223 kN	8.78
7217-B-JP	FAG	Precision / Angular Contact	85	150	28	90 kN	1.94
7217-B-TVP	FAG	Precision / Angular Contact	85	150	28	90 kN	1.82
